ThermoSphere 12V Double Square Electric Heated Towel Bar 450mm – 25W, 6 Finishes, 5-Year Warranty
ThermoSphere 12V Double Square Electric Heated Towel Bar 450mm – 25W, 6 Finishes, 5-Year Warranty
The ThermoSphere Double Square 450mm is a double-end-mounted 12V electric heated towel bar with a square-profile tube (40 × 100mm cross-section). At 12V SELV it is safe in any bathroom zone. The patented self-regulating element is 50% more energy-efficient than conventional bars. Made from 304 grade stainless steel, designed and finished in the UK. Available in 6 standard finishes. 25W output. 5-year warranty. 12V transformer required, sold separately.
25W
Max Output
12V SELV
Safety
450mm
Bar Length
304 SS
Grade
6
Finishes
5 yr
Warranty
⚠ Transformer Required: A separate 12V transformer is required and sold separately. Total the wattage of all bars on the circuit to size the transformer correctly. Connection to mains must be made by a qualified electrician.
Sizes & Finishes
| Code | Description | Finish | Output |
| HTB-DS-450-DPS | Double Square 450mm | Diamond Polished | 25W |
| HTB-DS-450-BSS | Double Square 450mm | Brushed Stainless | 25W |
| HTB-DS-450-PLB | Double Square 450mm | Diamond Polished Brass | 25W |
| HTB-DS-450-BRB | Double Square 450mm | Brushed Brass | 25W |
| HTB-DS-450-MBK | Double Square 450mm | Matt Black | 25W |
| HTB-DS-450-MWT | Double Square 450mm | Matt White | 25W |
Key Features
12V SELV — Safe in Any Bathroom Zone
At 12V SELV (Safety Extra Low Voltage) this bar is completely safe in all bathroom zones including Zone 1 (above or inside a bath/shower tray) where 230V appliances are not permitted. No specialist enclosure required.
12V SELVAll bathroom zones
Patented Self-Regulating Element — 50% More Efficient
The dual self-regulating heating element automatically limits maximum operating temperature. When a towel is placed on the bar the element heats to optimum; when temperature is reached output reduces rather than cycling on/off at full power. 50% more energy-efficient than conventional electric towel bars.
Patented elementSelf-regulating50% more efficient
304 Grade Stainless Steel — Designed and Made in the UK
Manufactured from 304 grade stainless steel — the premium grade used in demanding wet environments. Designed, finished and made in Great Britain. Available in 6 standard finishes: Diamond Polished, Brushed Stainless, Diamond Polished Brass, Brushed Brass, Matt Black, Matt White.
304 SSMade in UK6 finishes

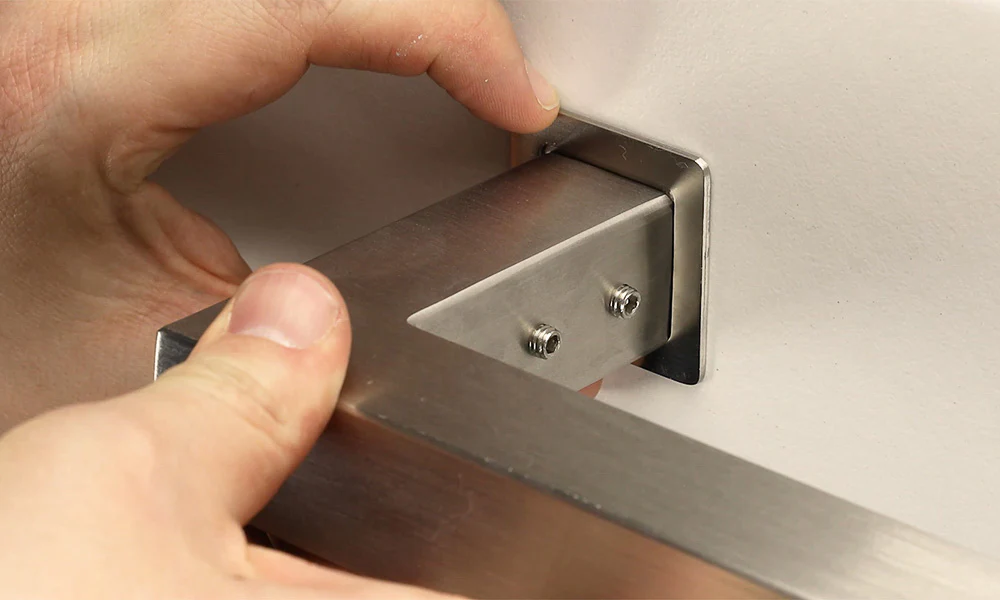

Double-End Patented Mounting — Up to 7 Bars, Integrated Cable Management
The patented mounting system supports up to 7 bars in a single run with perfect alignment and concealed cable routing. Each double-end bar holds up to 30kg. The 2m connection cable exits from the wall end of the bar, fully concealed.
Patented mountUp to 7 barsCable managed
T-MO Relay Mode and Dual Control Thermostat Compatible
Pair with the T-MO thermostat in relay mode for scheduled on/off control without temperature sensing. The ThermoSphere Dual Control Thermostat can independently schedule both a towel bar and underfloor heating from one thermostat.
T-MO relay modeDual Control compatible
Technical Specifications
| Technical Data | |
| Voltage | 12V SELV |
| Material | 304 Grade Stainless Steel |
| Dimensions (W×H×D) | 450 × 40 × 100mm |
| Output | 25W |
| Cable Length | 2m |
| Wiring Connection | Concealed |
| Fixing | Patented mounting system (concealed) |
| Finishes Available | |
| Standard Finishes | Diamond Polished, Brushed Stainless, Diamond Polished Brass, Brushed Brass, Matt Black, Matt White |
| Box Contents | |
| Contents | 1× towel bar, 4× fixing screws, 1× fixing spigot, 2× grub screws, 1× allen key, 1× 2m cold tail connection cable, installation instructions |
| Transformer | Not included — sold separately (required) |
| Certifications | |
| Patent | GB 2559848B / AU2017101753A4 |
| Warranty | 5 years |
| Country of Origin | United Kingdom |
ℹ Installation: All electrical connections must be made by a qualified electrician in accordance with BS 7671. Register your product with ThermoSphere online to activate your lifetime warranty.
