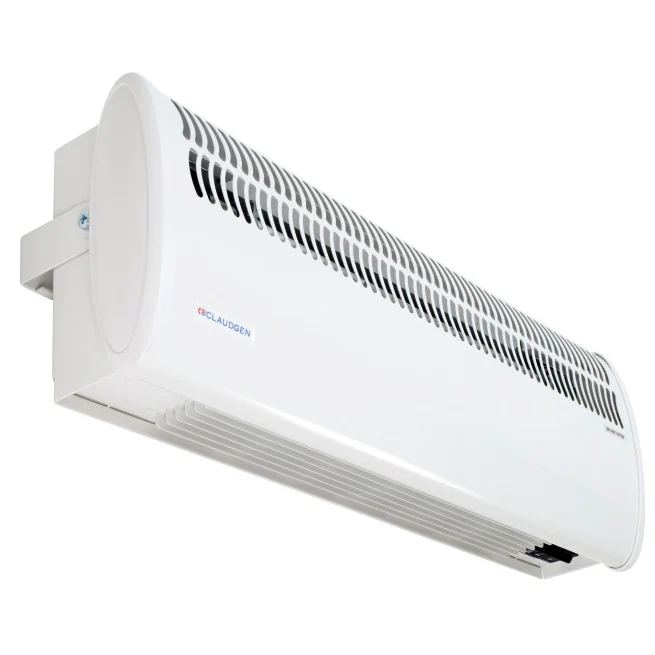

Consort HE7420 4.5kW Single Door Air Curtain
The Consort Screenzone HE7420 4.5kW Single Door Air Curtain is a compact, energy-efficient over-door heater designed to provide a welcoming curtain of warmth and prevent heat loss in commercial entrances such as shops, hotels, offices, and other premises.
Product Description
The Consort HE7420 air curtain creates a barrier of warm air across doorways, reducing energy loss from frequently opened external doors. This Air Curtain features integral switches for easy control, automatic safety cut-out, and a fan-only mode for air circulation. Finished in white with a wall mounting bracket for angular adjustment, it offers flexible installation options including suspension or trunking mounting. Ideal for single doorways up to 2.3m high, this unit combines functionality with energy savings.
Key Features
- 4.5kW heat output: Provides effective warmth for single doorways.
- 3 heat settings: Allows adjustable temperature control.
- Fan only mode: For air circulation without heating.
- Integral switches: Built-in controls for ease of use; optional remote switch available.
- Automatic safety cut-out: Thermal overload protection for safe operation.
- Flexible installation: Wall bracket included; can be suspended, wall, or trunking mounted.
- Quiet operation: Noise level of 46 dB(A) at 3m.
Technical Specifications
- Model: HE7420 – Screenzone Single Door Air Curtain.
- Power output: 4.5 kW.
- Heat settings: 3.
- Fan speeds: 1.
- Noise level: 46 dB(A) at 3m.
- Maximum mounting height: 2.3 m.
- Electrical supply: Single phase, 230V.
- Finish: White.
- Clearance from ceiling: 200 mm required.
Dimensions & Weights
- Height: 210 mm.
- Depth: 115 mm.
- Width: 634 mm.
- Weight: 5.1 kg.
System & Application Notes
- Ideal for doorways in shops, hotels, offices, and commercial premises to prevent heat loss and provide warmth.
- Supports energy savings by maintaining indoor temperatures during frequent door openings.
- Installation: Use supplied bracket for wall mounting; ensure 200 mm ceiling clearance; can be suspended or trunking mounted.
- Compatible with optional remote switch HE8407 for enhanced control.
- Professional installation recommended; this appliance must be earthed.
