Baxi HP60 R290 High Temperature Monobloc Air Source Heat Pump – 4kW / 6kW / 8kW / 11kW / 13kW (Single & Three Phase)
Baxi HP60 R290 High Temperature Monobloc Air Source Heat Pump – 4kW / 6kW / 8kW / 11kW / 13kW (Single & Three Phase)

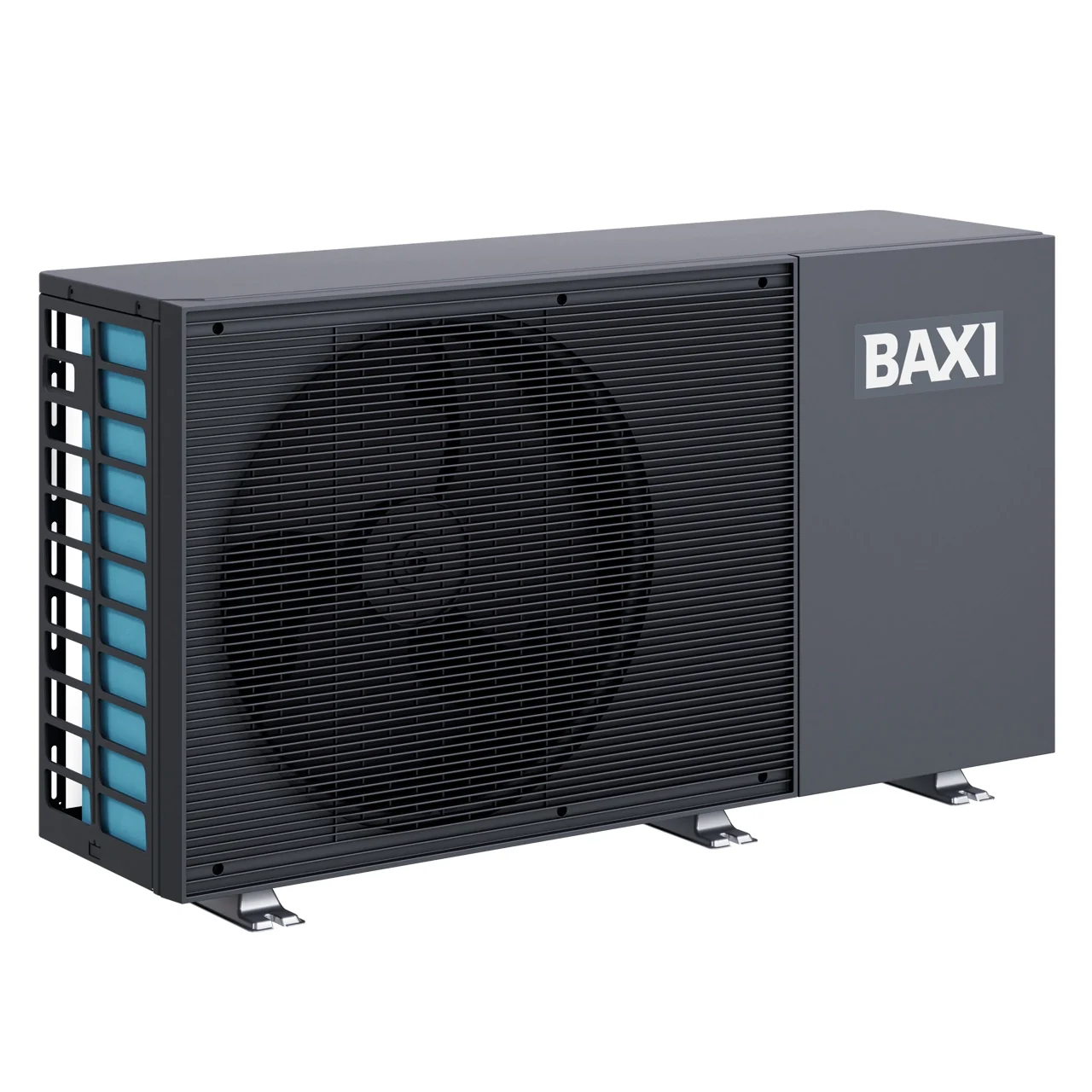

The Baxi HP60 is a high-temperature monobloc air source heat pump charged with R290 (propane) refrigerant — a natural gas with a global warming potential of just 3. Delivering flow temperatures up to 75 °C, the HP60 is one of the few ASHPs capable of replacing a gas boiler on existing radiators without major upgrades. Available in seven outputs from 4 kW to 13 kW (single-phase, with three-phase options on the 11 and 13 kW models), every variant is MCS-certified and Boiler Upgrade Scheme eligible.
With a SCOP of up to 5.34, an A+++ ErP rating across the range at 35 °C flow, and a sound power level from just 48 dB(A), the HP60 provides space heating, hot water and optional cooling from a single self-contained outdoor unit — no indoor refrigerant module, no on-site brazing.
Key features
R290 natural refrigerant
Charged with 0.7–1.25 kg of R290 propane — global warming potential of just 3, compliant with current and forthcoming F-Gas legislation.
High-temperature output
Delivers up to 75 °C flow at A−10 °C ambient — ideal for retrofits where existing radiators stay in place without oversizing.
A+++ ErP rated
A+++ at W35 across the full range, and A+++ at W55 on the 4, 6 and 8 kW models. Among the most efficient ASHPs in the UK.
Whisper-quiet operation
Sound power from 48 dB(A) — comparable to a domestic fridge. Suitable for tight urban gardens under MCS 020 noise rules.
Reversible heating & cooling
Provides space heating, DHW and active cooling in summer, with hot water available across the full −25 °C to +46 °C ambient range.
Variable-speed drives
Inverter-driven compressor and variable-speed pump modulate to match demand, reducing cycling and electricity use.
MCS-certified, BUS-eligible
Every variant carries an MCS certificate and qualifies for the Boiler Upgrade Scheme (up to £7,500) and ECO4.
Up to 7-year warranty
Standard 2-year warranty, extendable to 7 years when installed by a Baxi Works–registered BHPI-trained engineer.
Choose your model
Sizing depends on a heat-loss survey by your MCS-certified installer or use handy Spruce calculator.
| Model | Output | Phase | SCOP W35 | Sound | Typical home |
|---|---|---|---|---|---|
| HP60-4-1PHMB | 4 kW | 1-phase | 5.05 | 48 dB(A) | Small flat / well-insulated terrace |
| HP60-6-1PHMB | 6 kW | 1-phase | 4.99 | 48 dB(A) | 2–3 bed semi-detached |
| HP60-8-1PHMB | 8 kW | 1-phase | 4.97 | 49 dB(A) | 3–4 bed semi or detached |
| HP60-11-1PHMB | 11 kW | 1-phase | 4.59 | 52 dB(A) | Larger detached / older fabric |
| HP60-11-3PHMB | 11 kW | 3-phase | 4.59 | 52 dB(A) | Larger detached, 3-phase supply |
| HP60-13-1PHMB | 13 kW | 1-phase | 4.53 | 52 dB(A) | Large detached / period property |
| HP60-13-3PHMB | 13 kW | 3-phase | 4.53 | 52 dB(A) | Large property, 3-phase supply |
Technical specifications
Performance certified to EN 14511-2. Capacity and COP at A+7 °C.
| Specs | 4 kW | 6 kW | 8 kW | 11 kW | 13 kW |
|---|---|---|---|---|---|
| Heating capacity (A+7 / W35) | 4.40 kW | 6.26 kW | 8.50 kW | 11.50 kW | 13.50 kW |
| COP (A+7 / W35) | 5.17 | 4.89 | 4.98 | 4.85 | 4.60 |
| Heating capacity (A+7 / W55) | 4.40 kW | 6.10 kW | 8.00 kW | 11.50 kW | 13.50 kW |
| COP (A+7 / W55) | 3.24 | 3.12 | 3.18 | 3.15 | 3.04 |
| Cooling capacity (A35 / W18) | 4.56 kW | 6.40 kW | 9.00 kW | 11.90 kW | 13.90 kW |
| Refrigerant | R290 | R290 | R290 | R290 | R290 |
| Refrigerant charge | 0.70 kg | 0.70 kg | 1.10 kg | 1.25 kg | 1.25 kg |
| ErP sound power | 48 dB(A) | 48 dB(A) | 49 dB(A) | 52 dB(A) | 52 dB(A) |
| Nominal flow rate (W35) | 12.6 l/min | 17.9 l/min | 24.4 l/min | 33 l/min | 38.7 l/min |
| Min. system volume (W55) | 26 L | 26 L | 42 L | 49 L | 51 L |
| Water connection | G1" BSP | G1" BSP | G1¼" BSP | G1¼" BSP | G1¼" BSP |
| Pipework size | 28 mm | 28 mm | 35 mm | 35 mm | 35 mm |
| Expansion vessel | 8 L | 8 L | 8 L | 8 L | 8 L |
| Dimensions H × W × D (mm) | 725 × 1301 × 426 | 725 × 1301 × 426 | 872 × 1390 × 523 | 872 × 1390 × 523 | 872 × 1390 × 523 |
| Net weight | 94 kg | 94 kg | 121.5 kg | 139.5–141.5 kg | 139.5–141.5 kg |
| Phase options | 1-phase | 1-phase | 1-phase | 1 or 3-phase | 1 or 3-phase |
| Heating ambient range | −25 to +35 °C | −25 to +35 °C | −25 to +35 °C | −25 to +35 °C | −25 to +35 °C |
| Max. flow temperature | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C |
What's included
Frequently asked questions
Is R290 safe for a domestic installation?
Will the HP60 work with my existing radiators?
Do I need a separate controller?
What warranty applies?
Is it eligible for the Boiler Upgrade Scheme or ECO4?
How noisy is it in real-world use?
