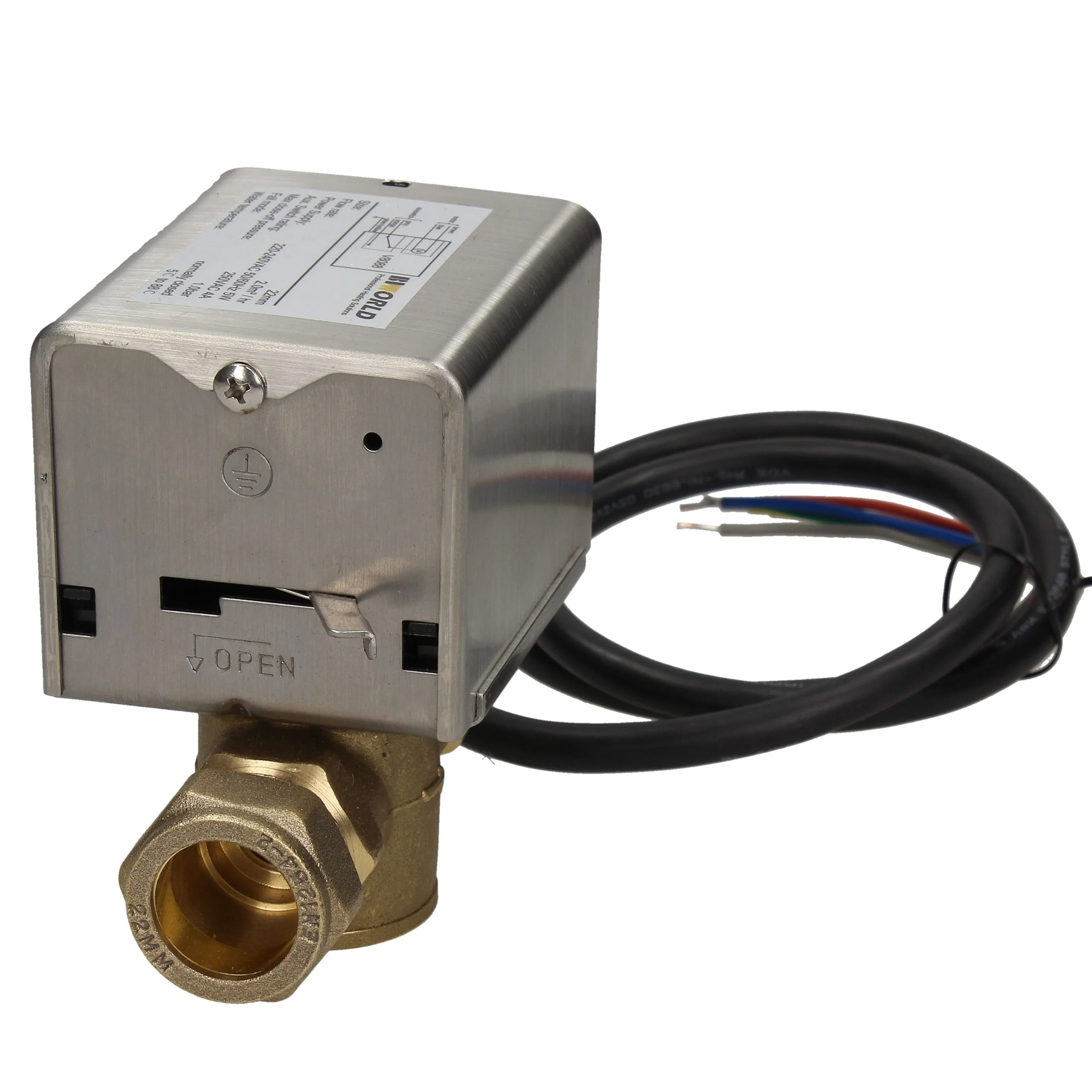

22 mm 2 Port Motorised Zone Valve
The BiWorld 22 mm 2 Port Motorised Zone Valve MPN: BZV22 is a reliable, spring-return motorized valve designed for controlling water flow in central heating and hot water systems, featuring a removable actuator head for easy maintenance and 22mm compression connections.
Product Description

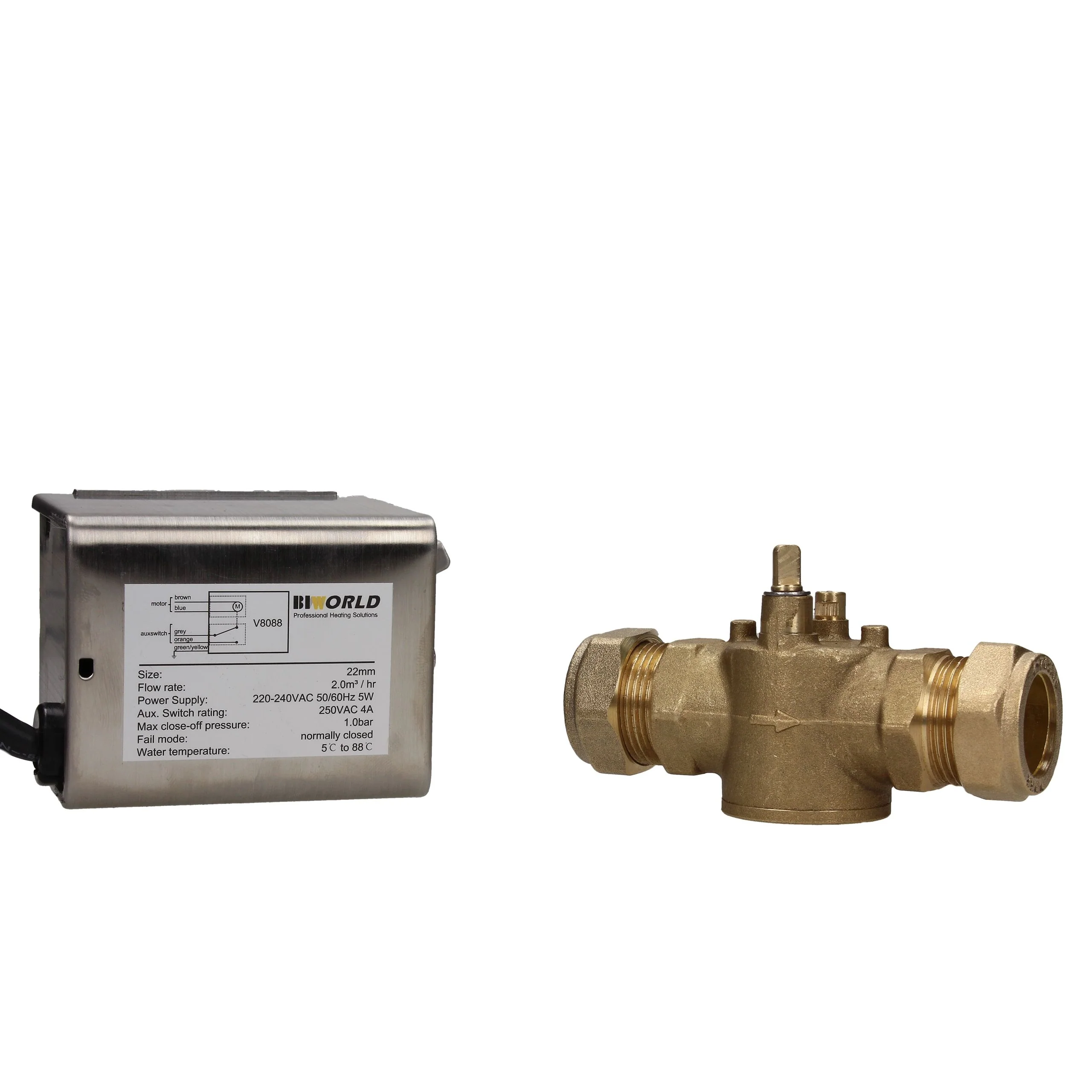

The BiWorld BZV22 is a 2-port motorized zone valve suitable for domestic and light commercial heating systems. It features a normally closed configuration with spring-return action, ensuring the valve closes when power is removed for safety. The removable actuator head allows for quick replacement without draining the system, and the 5-wire installation provides flexibility for auxiliary switches. Compatible with chilled or hot water, it operates quietly and efficiently, making it ideal for zone control in underfloor heating, radiators, or hot water circuits.
Key Features
- Removable actuator head: Enables easy servicing without system drainage.
- Spring-return action: Normally closed for fail-safe operation.
- 5-wire installation: Includes auxiliary switch for boiler interlock.
- 22mm compression connections: Quick and secure fitting to copper pipes.
- Quiet operation: Motorized with minimal noise.
- Durable construction: Brass body for corrosion resistance.
- Compatible medium: Chilled or hot water up to 88°C (max 100°C).
- Replaces Honeywell: Direct equivalent to popular models like V4043H.

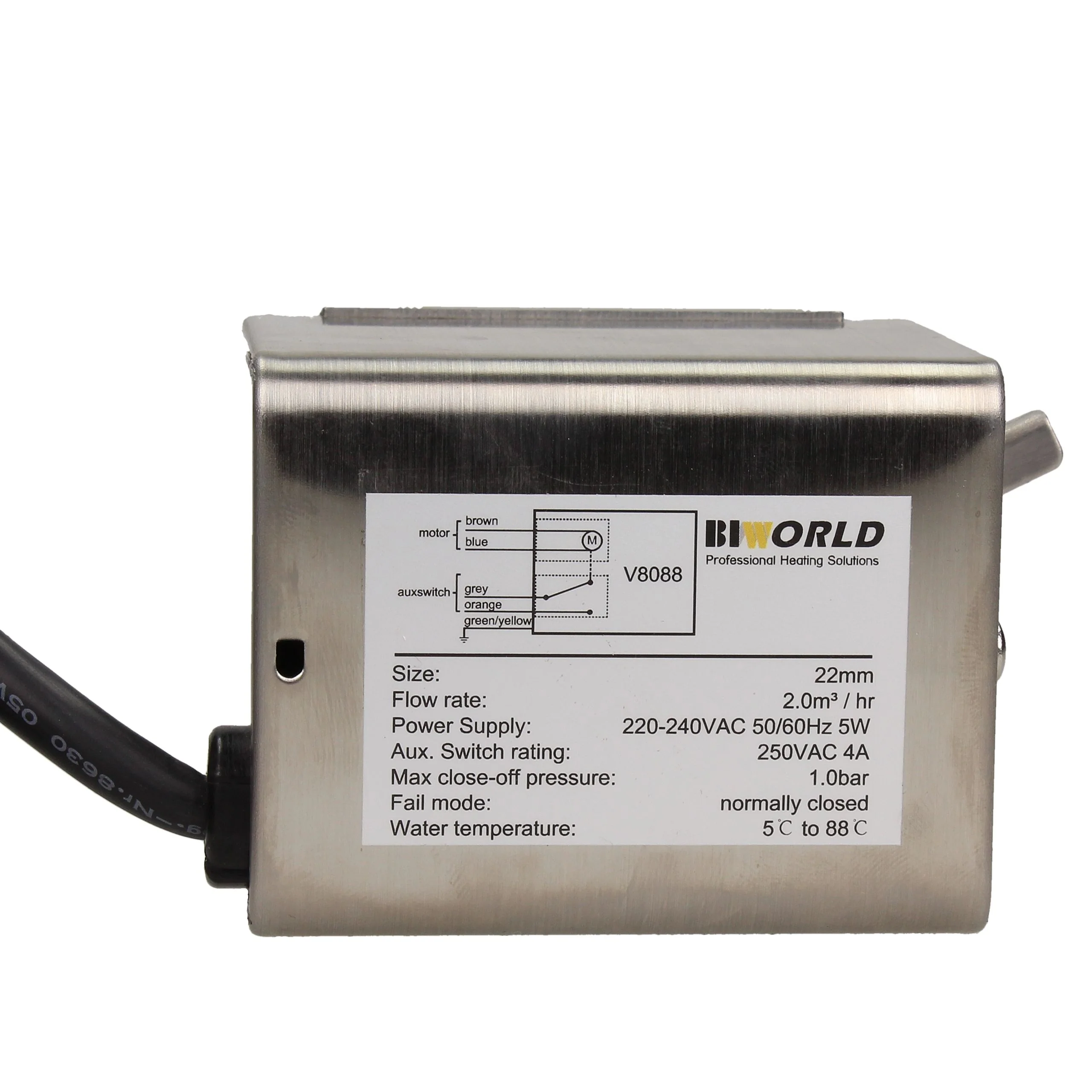

Technical Specifications
- Model: BZV22 – 2 Port Motorised Zone Valve 22mm.
- Valve type: 2-port, normally closed, spring return.
- Supply voltage: 220-240VAC, 50/60Hz.
- Power consumption: 5W (motor open).
- Switch rating: 2.2A (inductive).
- Cable length: 1m (5-core).
- Medium temperature range: +5 to +88°C (max 100°C).
- Ambient temperature: Up to 60°C.
- Static pressure: 8.6 bar max.
- Flow direction: As per arrow on valve body.
- Connections: 22mm compression.
Dimensions & Weights
- Width (valve body): 90 mm.
- Depth: 60 mm.
- Height (with actuator): 110 mm.
- Weight: ~0.8 kg.
System & Application Notes
- Ideal for zone control in central heating systems, underfloor heating, or hot water circuits.
- Compatible with most thermostats and controls for S-plan or Y-plan systems.
- Suitable for use with boilers, heat pumps, or district heating.
- Replaces Honeywell V4043H or similar valves.
- Installation by qualified heating engineers; ensure correct wiring for auxiliary switch.
- Warranty: 1 year standard.
