185W Victron Energy SmartSolar MPPT 75/15 12V Solar Charging Kit – 12V Off‑Grid Solution
This high‑efficiency 185W Victron Energy solar charging kit is a complete off‑grid solution for reliably charging 12V leisure batteries in motorhomes, caravans, campervans, boats and small off‑grid systems.
Combining a premium monocrystalline Victron solar panel with the SmartSolar MPPT 75/15 Bluetooth charge controller, pre‑terminated cables, fuse protection and connectors, it is designed for fast installation, long‑term durability and maximum energy harvest from a single roof‑mounted panel.
Why Buy This Kit
- All‑in‑one 185W 12V solar kit supplied with panel, MPPT controller, cables, fuse holder and connectors for a clean, professional installation.
- Victron SmartSolar MPPT 75/15 intelligently tracks the optimum power point, delivering more usable energy than PWM regulators and helping to extend battery life.
- Built‑in Bluetooth allows you to monitor performance and battery status in real time via the VictronConnect app on a smartphone or tablet.
- High‑quality monocrystalline panel with robust aluminium frame, tempered glass and MC4 connectors for dependable outdoor use in all weather conditions.
- Ideal for keeping a 12V battery topped up for LED lighting, water pumps, USB charging and a small 12V TV in leisure and off‑grid environments.
Key Features
-
185W Victron monocrystalline panel – 12V nominal, 36‑cell module with dimensions of approximately 1485 x 668 x 30 mm, optimised for limited roof space on vehicles and boats.
- SmartSolar MPPT 75/15 charge controller – 12/24V auto‑select, 15A maximum charge current, up to 220W PV on 12V systems, with very high conversion efficiency (up to 98%).
- Integrated Bluetooth – wireless connectivity for configuration, data logging and live monitoring using VictronConnect.
- Complete wiring and protection – supplied with 2 x 3 m 4 mm² PV cables (with MC4‑type Evo‑Ready connectors), 2 x 2 m 6 mm² battery cables (red and black), MIDI fuse holder and 30A fuse, plus cable lugs.
- Battery protection – multi‑stage charging profile with temperature‑compensated voltages to help protect and maximise the lifespan of leisure batteries.
- Rugged construction – anodised aluminium frame, advanced EVA encapsulation, triple‑layer backsheet and high‑transmission glass for impact resistance and long‑term outdoor reliability.
- Flexible installation – suitable for 12V battery systems in vehicles, boats, cabins, sheds and other small off‑grid applications where silent, low‑maintenance power is required.
Suitable For
- Motorhomes and campervans needing dependable off‑grid power for lighting, charging devices, water pumps and a small 12V TV.
- Caravans and holiday homes requiring a maintenance‑free way to keep 12V batteries charged between trips.
- Canal boats, narrowboats and liveaboard boats where quiet, fuel‑free power is preferred over running an engine or generator.
- Garden offices, sheds, cabins and small off‑grid projects using a single 12V battery bank for low‑to‑medium demand loads.
- Trade installations for customers who want a proven Victron‑based kit with integrated Bluetooth monitoring and premium components.

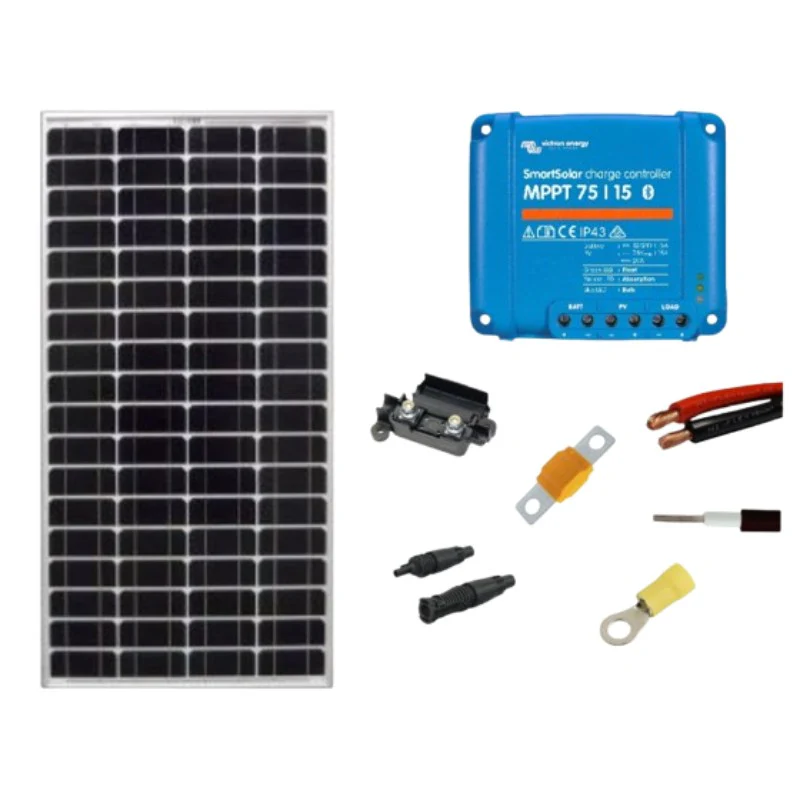

What’s Included
- 1 x Victron Solar Panel 185W‑12V Mono, approx. 1485 x 668 x 30 mm, series 4a.
- 1 x Victron SmartSolar MPPT 75/15 Retail charge controller with Bluetooth.
- 2 x 3 m 4 mm² black solar PV cables with MC4 Evo‑Ready connectors (panel to controller).
- 1 x 2 m 6 mm² red general‑purpose cable (controller to battery positive).
- 1 x 2 m 6 mm² black general‑purpose cable (controller to battery negative).
- Staubli MC4 Evo‑Ready push‑fit connectors (1 x male, 1 x female).
- Cable lugs for 4 mm² or 6 mm² cable – M6, M8 and M10 hole sizes.
- 1 x MIDI fuse holder (<16 mm²) and 1 x 30A MIDI fuse.
Technical Specifications
Solar Panel
| Type | Victron BlueSolar monocrystalline 185W‑12V panel, 36 cells. |
|---|---|
| Nominal power (Pmax) | 185 W (±3% tolerance). |
| Voltage at max power (Vmp) | Approx. 19.68 V. |
| Current at max power (Imp) | Approx. 9.41 A. |
| Open‑circuit voltage (Voc) | Approx. 24.11 V. |
| Short‑circuit current (Isc) | Approx. 9.91 A. |
| Dimensions (L x W x D) | Approx. 1485 x 668 x 30 mm. |
| Weight | Approx. 11 kg. |
| Connector type | Pre‑wired quick‑connect system with MC4 (PV‑ST01) connectors. |
| Maximum system voltage | 1000 V DC. |
| Operating temperature | ‑40°C to +85°C. |
| Construction | Tempered glass, anodised aluminium frame, EVA encapsulation, triple‑layer backsheet. |
| Warranty (panel) | Limited 5‑year product warranty and long‑term power output warranty. |
SmartSolar MPPT 75/15 Charge Controller
| Model | Victron SmartSolar MPPT 75/15 Retail. |
|---|---|
| Battery voltage | 12 V or 24 V (auto‑select). |
| Rated charge current | 15 A. |
| Nominal PV power (12 V) | Up to approx. 220 W. |
| Nominal PV power (24 V) | Up to approx. 440 W. |
| Maximum PV open‑circuit voltage | 75 V. |
| Maximum PV short‑circuit current | 15 A. |
| Peak efficiency | Up to approx. 98%. |
| Charge algorithm | Three‑stage adaptive (bulk, absorption, float), user‑adjustable via VictronConnect. |
| Communication | Integrated Bluetooth and VE.Direct data port. |
| Protection | Over‑temperature, PV reverse polarity, short‑circuit and battery over‑voltage protection. |
| Operating temperature | Approx. ‑30°C to +60°C (derating above 40°C). |
| Enclosure rating | IP43 (electronics), IP22 (connections). |
| Terminals | Up to 6 mm² / AWG10. |
| Dimensions (H x W x D) | Approx. 100 x 113 x 40–50 mm (typical for 75/15). |
| Weight | Approx. 0.5–0.6 kg. |
| Certifications | Designed to comply with EN/IEC 62109‑1 and related safety standards. |
| Warranty (controller) | Typical Victron SmartSolar 5‑year limited warranty. |
Kit & System Details
| System type | 12 V off‑grid solar charging kit (controller also supports 24 V systems if required). |
|---|---|
| Typical battery bank | Ideal for leisure battery banks up to around 250 Ah at 12 V for light to moderate loads. |
| Included protection | MIDI fuse holder and 30 A fuse on battery side, plus appropriate cable lugs. |
| Cable lengths | Approx. 2 x 3 m PV cable (panel to controller) and 2 x 2 m 6 mm² battery cable (controller to battery). |
| Mounting | Panel supplied without brackets; compatible with a wide range of roof or deck mounting systems (sold separately). |
